p4 protect

Synopsis

Control users' access to files, directories, and commands.

Syntax

p4 [g-opts] protect
p4 [g-opts] protect -o
p4 [g-opts] protect -i

Description

Use p4 protect to control Perforce permissions. You can use p4 protect to:

Control which files particular users can access
Manage which commands particular users are allowed to use
Combine the two, allowing one user to write one set of files but only be able to read other files
Grant permissions to groups of users, as defined with p4 group
Grant or deny specific access rights to users by using the =read, =open, =write, and =branch rights, without having to re-grant lesser permissions
Limit access to particular IP addresses, so that only users at these IP addresses can run Perforce.

In general, you typically grant an access level to a user or group, after which, if finer-grained control is required, one or more specific rights can then be selectively denied.

The permission levels and access rights are described in the table below:

Permission Level / Right	What the User Can Do
`list`	The user can access all Perforce metadata, but has no access to file contents. The user can run all the commands that describe Perforce objects, such as p4 files, p4 client, p4 job, p4 describe, p4 branch, etc.
`read`	The user can do everything permitted with `list` access, and also run any command that involves reading file data, including p4 print, p4 diff, p4 sync, and so on.
`=read`	If this right is denied, users cannot use p4 print, p4 diff, or p4 sync on files.
`open`	This gives the user permission to do everything she can do with `read` access, and gives her permission to p4 add, p4 edit, p4 delete, and p4 integrate files. However, the user is not allowed to lock files or submit files to the depot.
`=open`	If this right is denied, users cannot open files with p4 add, p4 edit, p4 delete, or p4 integrate.
`write`	The user can do all of the above, and can also write files with p4 submit and lock them with p4 lock.
`=write`	If this right is denied, users cannot submit open files.
`=branch`	If this right is denied, users cannot use files as a source for p4 integrate.
`review`	This permission is meant for external programs that access Perforce. It gives the external programs permission to do anything that `list` and `read` can do, and grants permission to run p4 review and p4 counter. It does not include `open` or `write` access.
`admin`	Includes all of the above, including administrative commands that override changes to metadata, but do not affect service operation. These include p4 branch -f, p4 change -f, p4 client -f, p4 job -f, p4 jobspec, p4 label -f, p4 obliterate, p4 shelve -f -d, p4 typemap, p4 unlock -f, and p4 verify.
`super`	Includes all of the above, plus access to the superuser commands such as p4 admin, p4 counter, p4 triggers, p4 protect, the ability to create users with p4 user -f, and so on.

Form Fields

When you run p4 protect, Perforce displays a form with a single field, Protections:. Each permission is specified in its own indented line under the Protections: header, and has five values:

Column	Description
Access Level	One of the access levels `list`, `read`, `open`, `write`, `review`, or `super`, or one of the rights of `=read`, `=open`, `=write`, and `=branch`, as defined above.
User or Group	Does this protection apply to a `user` or a `group`?
Group Name or User Name	The name of the user or the name of the group, as defined by p4 group. To grant this permission to all users, use the `*` wildcard.
Host	The IP address of the client host. IPv6 addresses and IPv4 addresses are also supported. You can use the `` wildcard to refer to all IP addresses, but only when you are not using CIDR notation. If you use the `` wildcard with an IPv6 address, you must enclose the entire IPv6 address in square brackets. For example, `[2001:db8:1:2:]` is equivalent to `[2001:db8:1:2::]/64`. Best practice is to use CIDR notation, surround IPv6 addresses with brackets, and to avoid the `` wildcard. How the system forms host addresses depends on the setting of the `dm.proxy.protects` variable. By default, this variable is set to 1. This means that if the client host uses some intermediary (proxy, broker, replica) to access the server, the `proxy-` prefix is prepended to the client host address to indicate that the connection is not direct. If you specify `proxy-*` for the `Host` field, that will affect all connections made via proxies, brokers, and replicas. A value like `proxy-10.0.0.5` identifies a client machine with an IP address of `10.0.0.5` that is connected to the server through an intermediary. Setting the `dm.proxy.protects` variable to 0, removes the `proxy-` prefix and allows you to write a single set of protection entries that apply both to directly-connected clients as well as to those that connect via an intermediary. This is more convenient but less secure if it matters that a connection is made using an intermediary. If you use this setting, all intermediaries must be at release 2012.1 or higher.
Depot File Path	The depot file path this permission is granted on, in Perforce depot syntax. The file specification can contain Perforce wildcards. To exclude this mapping from the permission set, use a dash (`-`) as the first character of this value. If a depot is excluded, the user denied access will no longer see the depot in the output of p4 depots. Nor will the depot show up, for this user, in the default branch, client, and label views.

When exclusionary mappings are not used, a user is granted the highest permission level listed in the union of all the mappings that match the user, the user's IP address, and the files the user is trying to access. In this case, the order of the mappings is irrelevant.

When exclusionary mappings are used, order is relevant: the exclusionary mapping overrides any matching protections listed above it in the table. No matter what access level is being denied in the exclusionary protection, all the access levels for the matching users, files, and IP addresses are denied.

If you use exclusionary mappings to deny access to an area of the depot to members of group1, but grant access to the same area of the depot to members of group2, a user who is a member of both group1 and group2 is either granted or denied access based on whichever line appears last in the protections table.

Options

`-i`	Read the form from standard input without invoking an editor.
`-o`	Write the form to standard output without invoking an editor.
`g-opts`	See “Global Options”.

Usage Notes

Can File Arguments Use Revision Specifier?	Can File Arguments Use Revision Range?	Minimal Access Level Required
No	No	`super`

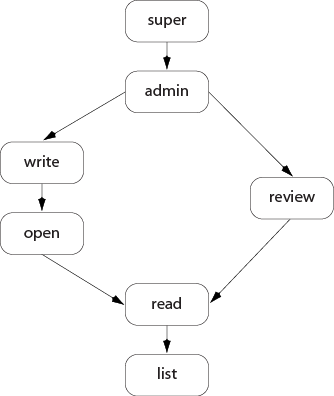

Each permission level includes all the access levels below it, as illustrated in this chart:
The specific rights of =read, =open, =write, and =branch can be used to override the automatic inclusion of lower access levels. This makes it possible to deny individual rights without having to then re-grant lesser rights.

For example, if you want administrators to have the ability to run administrative commands, but to deny them the ability to make changes in certain parts of the depot, you could set up a permissions table as follows:
```
admin       user      joe       *       //...
=write      user      joe       *       -//depot/build/...
=open       user      joe       *       -//depot/build/...
```
In this example, user joe can perform administrative functions, and this permission applies to all depots in the system. Because the admin permission level also implies the granting of all lower access levels, joe can also write, open, read and list files anywhere in the system, including //depot/build/. To protect the build area, the =write and =open exclusionary lines are added to the table. User joe is prevented from opening any files for edit in the build area. He is also prevented from submitting any changes in this area he may already have open. He can continue to create and modify files, but only if those files are outside of the protected //depot/build/... area.

Access levels determine which commands you can use. The following table lists the minimum access level required for each command. For example, because p4 add requires at least open access, you can run p4 add if you have open, write, admin, or super access.

Command	Access Level	Notes
add	`open`
admin	`super`
annotate	`read`
archive	`admin`
attribute	`write`	The `-f` option to set the attributes of submitted files requires `admin` access.
branch	`open`	The `-f` option to override existing metadata or other users' data requires `admin` access.
branches	`list`
change	`open`	The `-o` option (display a change on standard output) requires only `list` access. The `-f` option to override existing metadata or other users' data requires `admin` access.
changes	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
client	`list`	The `-f` option to override existing metadata or other users' data requires `admin` access.
clients	`list`
configure	`super`
copy	`list`	`list` access to the source files; `open` access to the destination files.
counter	`review`	`list` access to at least one file in any depot is required to view an existing counter's value; `review` access is required to change a counter's value or create a new counter.
counters	`list`
cstat	`list`
dbschema	`super`
dbstat	`super`
dbverify	`super`
delete	`open`
depot	`super`	The `-o` option to this command, which allows the form to be read but not edited, requires only `list` access.
depots	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
describe	`read`	The `-s` option to this command, which does not display file content, requires only `list` access.
diff	`read`
diff2	`read`
dirs	`list`
diskspace	`super`
edit	`open`
export	`super`
filelog	`list`
files	`list`
fix	`open`
fixes	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
flush	`list`
fstat	`list`
grep	`read`
group	`super`	The `-o` option to this command, which allows the form to be read but not edited, requires only `list` access. The `-a` option to this command requires only `list` access, provided that the user is also listed as a group owner. The `-A` option requires `admin` access.
groups	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
have	`list`
help	`none`
info	`none`
integrate	`open`	The user must have `open` access on the target files and `read` access on the source files.
integrated	`list`
interchanges	`list`
istat	`list`
job	`open`	The `-o` option to this command, which allows the form to be read but not edited, requires only `list` access. The `-f` option to override existing metadata or other users' data requires `admin` access.
jobs	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
journaldbchecksums	`super`
key	`review`	`list` access to at least one file in any depot is required to view an existing key's value; `review` access is required to change a key's value or create a new key.
key	`list`	`admin` access is required if the `dm.keys.hide` configurable is set to `2`.
keys	`list`	`admin` access is required if the `dm.keys.hide` configurable is set to `1` or `2`.
label	`open`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot. The `-f` option to override existing metadata or other users' data requires `admin` access.
labels	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
labelsync	`open`
license	`super`	The `-u` option, which displays license usage, requires only `admin` access.
list	`open`
lock	`write`
lockstat	`super`
logappend	`list`
logger	`review`
login	`list`
logout	`list`
logparse	`super`
logrotate	`super`
logschema	`super`
logstat	`super`
logtail	`super`
merge	`open`
monitor	`list`	`super` access is required to terminate or clear processes, or to view arguments.
move	`open`
obliterate	`admin`
opened	`list`
passwd	`list`
ping	`admin`
populate	`open`
print	`read`
protect	`super`
protects	`list`	`super` access is required to use the `-a`, `-g`, and `-u` options.
property	`list`	`list` to read, `admin` to add/delete new properties, or show a property setting for all users and groups.
proxy	`none`	Must be connected to a Perforce Proxy
pull	`super`
reconcile	`open`
reload	`open`	`admin` access is required to use p4 reload -f to reload other users' workspaces and labels.
reopen	`open`
replicate	`super`
resolve	`open`
resolved	`open`
restore	`admin`
revert	`list`
review	`review`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
reviews	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
server	`super`
serverid	`list`	`super` access is required to set the server ID.
set	`none`
shelve	`open`	`admin` access is required to forcibly delete shelved files with p4 shelve -f -d
sizes	`list`
status	`open`
stream	`open`
streams	`list`
submit	`write`
sync	`read`
tag	`list`
tickets	`none`
triggers	`super`
typemap	`admin`	The `-o` option to this command, which allows the form to be read but not edited, requires only `list` access.
unload	`open`	`admin` access is required to use p4 unload -f to unload other users' workspaces and labels.
unlock	`open`	The `-f` option to override existing metadata or other users' data requires `admin` access.
unshelve	`open`
update	`list`
user	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot. The `-f` option (which is used to create or edit users) requires `super` access.
users	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot. If the `run.users.authorize` configurable is set to `1`, you must also authenticate yourself to the server before you can run p4 users.
verify	`admin`
where	`list`	This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.

At a new Perforce installation, anyone who wants to use Perforce is allowed to connect to the service, and all Perforce users are superusers. The first time anyone runs p4 protect, the invoking user is made the superuser, and everyone else is given write permission on all files. Run p4 protect immediately after installation.
In the course of normal operation, you'll primarily grant users list, read, write, and super access levels. The open and review access levels are used less often.
Those commands that list files, such as p4 describe, will only list those files to which the user has at least list access.
Some commands (for instance, p4 change, when editing a previously submitted changelist) take a -f option that requires admin or super access.
The open access level gives the user permission to change files but not submit them to the depot. Use this when you're temporarily freezing a codeline, but don't want to stop your developers from working, or when you employ testers who are allowed to change code for their own use but aren't allowed to make permanent changes to the codeline.
The review access level is meant for review daemons that need to access counter values.
If you write a review daemon that requires both review and write access, but shouldn't have super access, grant the daemon both review and write access on two separate lines of the protections table.
To limit or eliminate the use of the files on a particular server as a remote depot from another server (as defined by p4 depot), create protections for user remote (or for the service user by which the other server authenticates itself). Remote depots are accessed either by the service user associated with the user's Perforce service, or by a virtual user named remote.
For further information, see the "Protections" chapter of the Perforce Server Administrator's Guide: Fundamentals.

Examples

Suppose that user joe is a member of groups devgroup and buggroup, as set by p4 group, the organization is using only IPv4 connections, and the protections table reads as follows:

super   user    bill      *                 //...
write   group   devgroup  *                 //depot/...
write   group   buggroup  *                 -//depot/proj/...
write   user    joe       192.168.100.0/24  //...

Joe attempts a number of operations. His success or failure at each is described below:

From IP address...	Joe tries...	Results
`10.14.10.1`	p4 print //depot/misc/...	Succeeds. The second line grants Joe `write` access on these files; `write` access includes `read` access, and this protection isn't excluded by any subsequent lines.
`10.14.10.1`	p4 print //depot/proj/README	Fails. The third line removes all of Joe's permissions on any files in this directory. (If the second protection and the third protection had been switched, then the subsequent protection would have overridden this one, and Joe would have succeeded).
`192.168.100.123`	p4 print //depot/proj/README	Succeeds. Joe's workstation is at an IP address from which he is granted this permission in the fourth line.
`192.168.100.123`	p4 verify //depot/misc/...	Fails. p4 verify requires `super` access; Joe doesn't have this access level no matter what IP address he's coming from.

To create or edit groups of users	p4 group
To list all user groups	p4 groups
